HDPE Sheet VS ABS Sheet
- Author: Balance Lee
- 9+ Years of Manufacturing
When selecting plastic sheet materials for industrial applications, HDPE sheet and ABS sheet are both commonly considered thermoplastic materials. Both offer a wide range of applications, but they are not suited to exactly the same operating conditions. There is no absolute answer as to which material is better. The right choice depends on your project’s working environment, performance requirements, fabrication methods, and budget.
In this article, we will compare HDPE sheet vs. ABS sheet in terms of mechanical properties, chemical resistance, temperature performance, outdoor use, fabrication, appearance, cost, and typical applications. This comparison will help you better understand the differences between the two materials and choose the one that is more suitable for your project.
| Comparison | HDPE Sheet | ABS Sheet |
|---|---|---|
| Material Type | High-Density Polyethylene (HDPE) | Acrylonitrile Butadiene Styrene (ABS) |
| Key Features | Excellent chemical resistance, low water absorption, impact resistant and durable | Good rigidity, attractive appearance and excellent thermoformability |
| Strength | Good toughness and impact resistance | Higher rigidity and good structural stability |
| Rigidity | Lower rigidity; creep or deformation may occur under long-term loading | Generally higher than HDPE and better suited for rigid structural applications |
| Impact Resistance | Excellent; maintains good toughness even at low temperatures | Good, but impact performance may decrease at low temperatures |
| Chemical Resistance | Excellent resistance to many acids, alkalis and chemical media | Moderate; not suitable for some highly corrosive environments |
| Water Absorption | Extremely low; absorbs almost no water | Higher water absorption than HDPE |
| Temperature Performance | Suitable for a relatively wide temperature range, but softens at higher temperatures | Good thermal stability, although long-term high-temperature use is limited |
| UV & Weather Resistance | Outdoor performance can be improved with UV stabilizers | Standard ABS may age during prolonged outdoor exposure and usually requires UV protection |
| Fabrication | Easy to cut, drill, weld and CNC machine | Easy to machine and well suited for injection molding and thermoforming |
| Thermoforming | Moderate | Excellent; suitable for complex shapes and formed components |
| Appearance | Functional surface appearance with a wide range of color options | Better surface gloss and overall appearance |
| Cost | Generally more economical | Generally slightly higher in cost |
Table of Contents

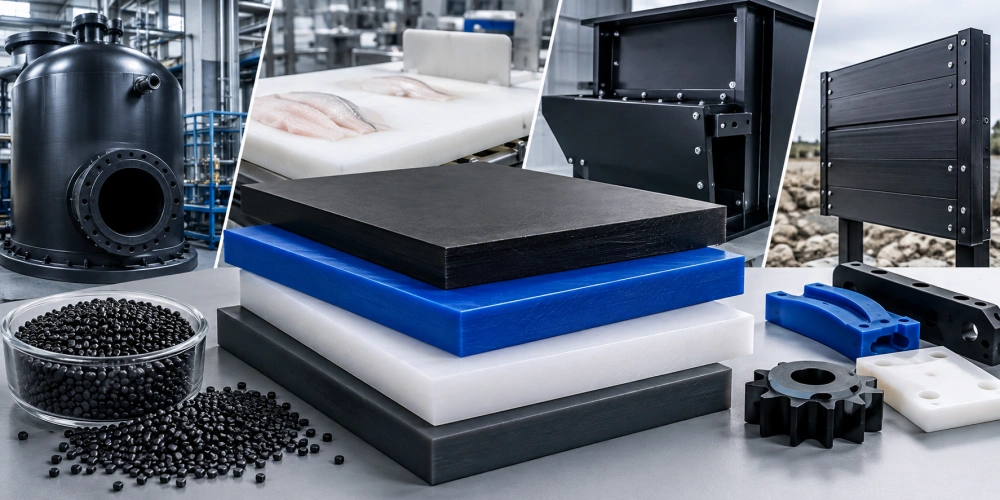

What Is HDPE Sheet?
HDPE (High-Density Polyethylene) is a widely used thermoplastic engineering material made from high-density polyethylene resin.
HDPE sheet is known for its excellent chemical resistance, impact resistance, low water absorption, and durability. It is also easy to cut, drill, weld, and CNC machine. Because of these properties, HDPE sheet is widely used in chemical equipment, water tank linings, food processing equipment, machinery components, outdoor facilities, and anti-corrosion applications.

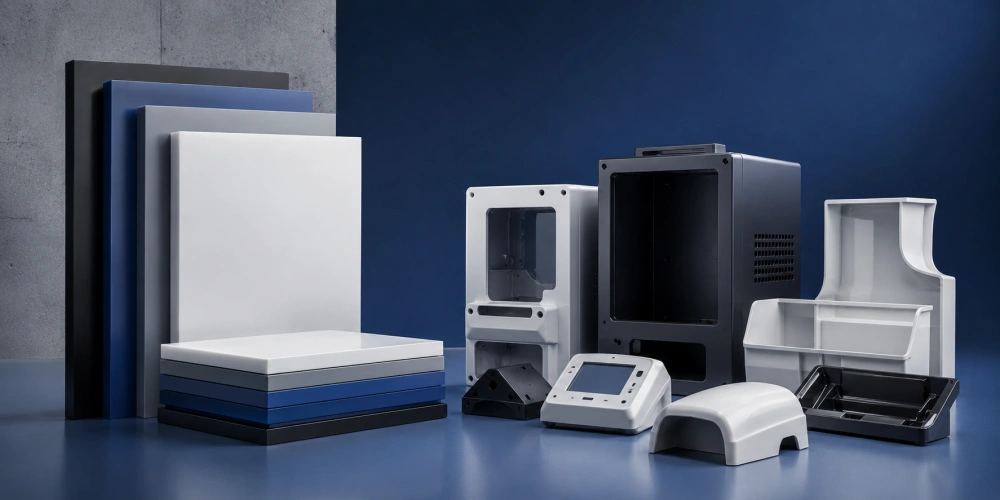

What Is ABS Sheet?
ABS (Acrylonitrile Butadiene Styrene) is a thermoplastic engineering material made from three different monomers. It offers a good balance of rigidity, processability, and surface appearance.
ABS sheet is characterized by its good structural strength, dimensional stability, and thermoforming performance. It can be processed through vacuum forming, thermoforming, cutting, and mechanical fabrication. Its surface is smooth and flat, making it suitable for applications where appearance and surface quality are important, such as automotive interior parts, equipment housings, display structures, electronic enclosures, and industrial components.
In a word, ABS sheet is an engineering plastic that places greater emphasis on rigidity, appearance, and forming performance, making it a suitable choice for applications with higher requirements for product appearance and structural design.
HDPE vs ABS Sheet: Mechanical Properties
Both HDPE and ABS offer useful mechanical strength, but their advantages are different.
HDPE Sheet
HDPE offers good impact resistance and toughness, making it less likely to crack or break under impact. It maintains good toughness even in low-temperature environments and has relatively lower rigidity, and creep may occur under long-term static loads.
According to our SGS test reports, the HDPE sample showed a non-break result in the Charpy unnotched impact test, a flexural strength of 26.9 MPa with a flexural modulus of 1250 MPa, and a tensile strength of 23.0 MPa with 830% elongation at break. You can download the corresponding test reports below for detailed test methods, conditions, and results.
ABS Sheet
ABS sheet provides higher rigidity and better dimensional stability, making it more suitable for structural support. And it has a relatively hard surface and is well suited for parts that require both appearance and structural strength. However, its impact toughness is generally lower than that of HDPE, especially at low temperatures.
Therefore, if your application focuses more on impact resistance and durability, HDPE is usually the better choice. If the project requires higher rigidity and dimensional stability, ABS is generally more suitable.

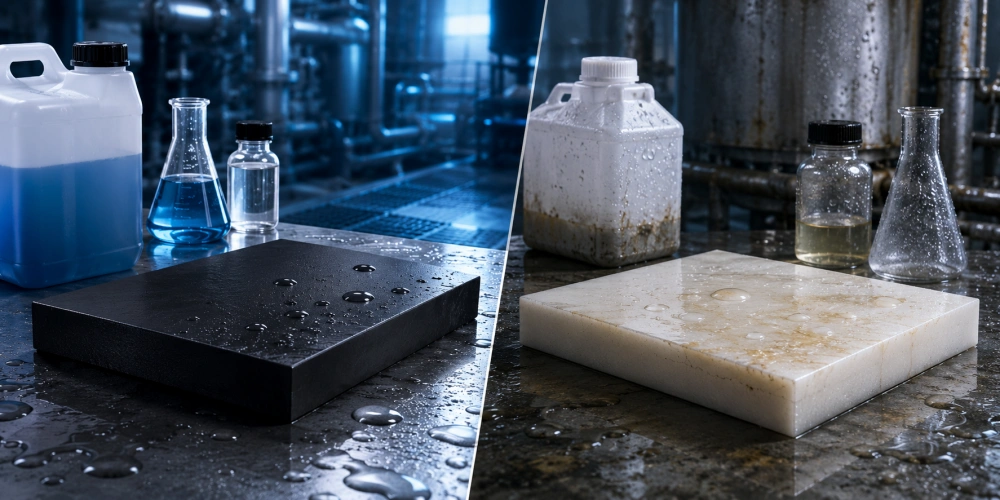

HDPE vs ABS Sheet: Chemical and Moisture Resistance
When it comes to chemical resistance and moisture resistance, HDPE generally performs better.
HDPE Sheet
HDPE sheet has extremely low water absorption, so it absorbs very little moisture. It offers good resistance to a wide range of acids, alkalis, and chemical media, well suited for water tanks, chemical equipment, liners, and other wet or corrosive environments.
According to our SGS test report, the HDPE sample showed no color change after being immersed in 5% HCl at 23°C for 24 hours under ISO 175:2010. You can download the test report below for detailed test conditions and results.
ABS Sheet
ABS sheet provides a certain level of chemical resistance, but its resistance to some solvents, strong acids, and strong alkalisis more limited. It has higher water absorption than HDPE, which may affect dimensional stability during long-term exposure to moisture.
Therefore, if your application involves regular contact with water, moisture, or chemical substances, HDPE is generally the more reliable choice. ABS is better suited for general industrial and structural applications where chemical exposure is limited.

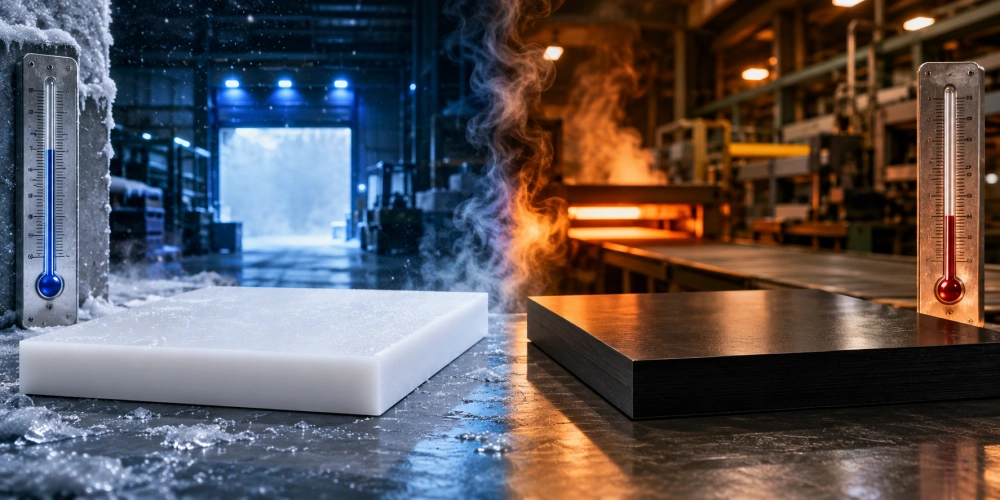

HDPE vs ABS Sheet: Temperature Performance
HDPE and ABS perform differently under various temperature conditions, so the expected operating temperature range and environmental changes should be considered when selecting the material.
HDPE Sheet
It maintains good toughness in low-temperature environmentsand is less likely to become brittle or crack and gradually softens as temperature increases and may experience some thermal expansion, better suited for applications involving low temperatures or significant temperature fluctuations.
The following SGS test reports provide reference information on the temperature resistance performance of our HDPE sheet under low and high temperature testing conditions. According to our reports, the HDPE sample showed no visual change after 24 hours at -50°C and after 24 hours at 100°C under dry heat conditions. You can download the corresponding test reports below for detailed test methods, conditions, and results.
ABS Sheet
ABS sheet maintains relatively good rigidity at moderate temperatures. It generally has a higher heat deflection temperature than standard HDPE. However, its impact resistance may decrease in low-temperature conditions.
In summary, if your application requires good low-temperature performance and resistance to environmental temperature changes, HDPE is generally more suitable. If the priority is rigidity and dimensional stability at moderate temperatures, ABS may offer an advantage.
HDPE vs ABS Sheet for Outdoor Use
For outdoor applications, the main factors to consider are UV exposure, temperature changes, moisture, and long-term weather resistance.
HDPE Sheet
HDPE has low water absorption, so its performance is less likely to be affected by moisture. With the addition of UV stabilizers, its long-term outdoor durability can be further improved, making it suitable for outdoor equipment, protective panels, marine components, and protective structures.
According to our SGS test report, the HDPE sample showed no obvious discoloration after 24 hours of UV ageing exposure under ISO 4892-3:2016 Cycle 1 using UVA-340 lamps. You can download the test report below for detailed test conditions and results.
The following case study shows how a customized 1640 × 2580 × 3 mm UV-resistant white HDPE Sheet was developed to meet outdoor temporary fence application requirements for an Australian customer.
Case Study: Customized HDPE Sheet for Outdoor Temporary Fence Application
Case Study: Customiz
ABS Sheet
ABS offers a good surface appearance, but standard ABS may gradually age and lose performance under prolonged sunlight exposure. For outdoor applications, it usually requires UV modification or additional surface protection to improve long-term weather resistance.
Therefore, for applications that will be exposed to rain, sunlight, and outdoor conditions for long periods, HDPE sheet is generally the better choice. ABS is more suitable for applications that require better appearance and structural performance in relatively controlled environments.

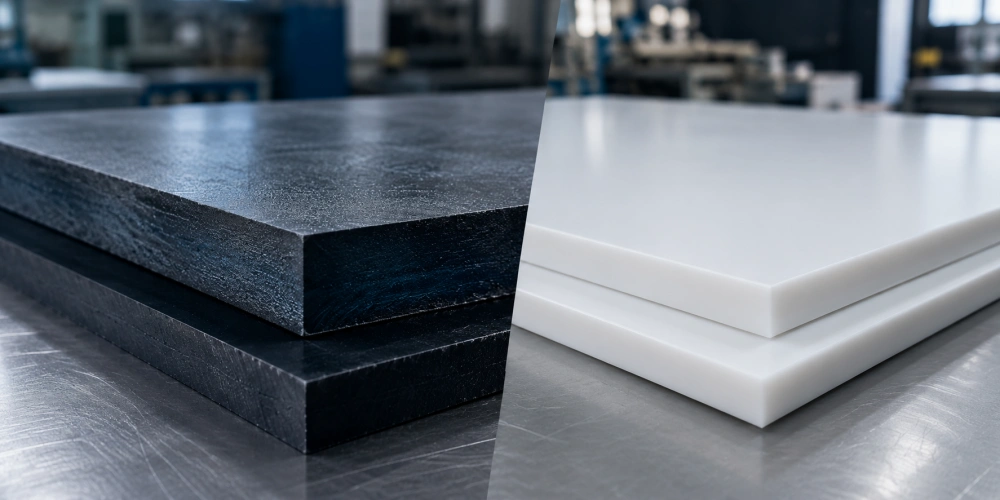

HDPE vs ABS Sheet: Surface Finish and Appearance
HDPE and ABS each have their own advantages when it comes to surface appearance.
HDPE Sheet
HDPE typically has a matte or semi-matte surface finish, with stable coloration and a wide range of color options for industrial applications. Its surface characteristics place greater emphasis on durability and functional performance rather than decorative appearance.
ABS Sheet
ABS generally offers better surface gloss and visual appearance and can achieve a smooth, refined finish more easily. This makes it more suitable for housings, display components, and products with higher appearance requirements.
Therefore, if your application focuses more on durability, protection, and long-term use, HDPE is generally more suitable. If the product requires a better visual finish and higher surface quality, ABS has a clear advantage.

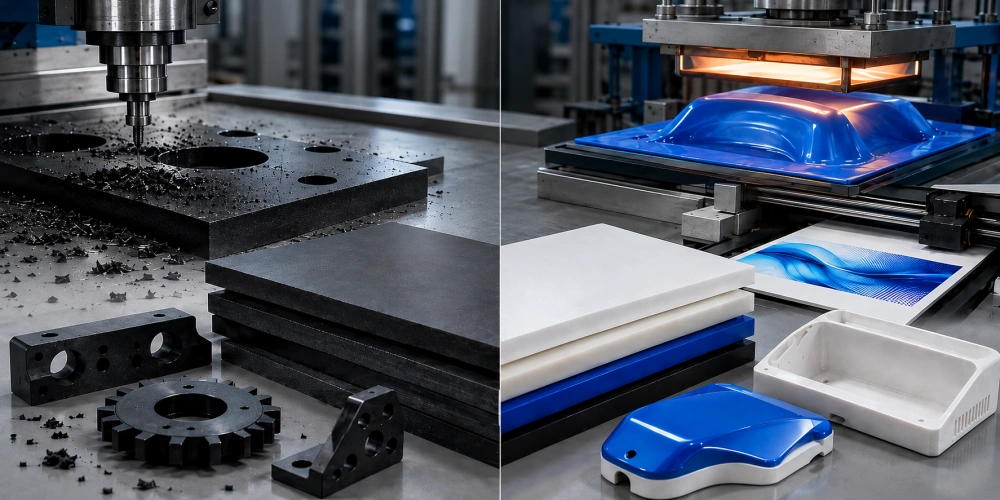

HDPE vs ABS Sheet: Fabrication and Processing
Both HDPE and ABS can be machined and fabricated, but they are better suited to different processing methods.
HDPE Sheet
HDPE can be cut, drilled, CNC machined, and plastic welded, and it is less prone to cracking during fabrication. This makes it suitable for structural components, liners, and custom parts. However, because HDPE has relatively noticeable thermal expansion, dimensional control should be carefully considered during machining.
The following case study shows how customized HDPE CNC machining parts were developed for a German customer, including precision machining and tailored solutions for specific application requirements.
Customized HDPE CNC Machining Parts for a German Customer
Case Study: Customiz
ABS Sheet
ABS offers good machinability and can be cut, drilled, and CNC machined. One of its main advantages is its excellent thermoforming performance, making it well suited for producing complex curved shapes, enclosure structures, and appearance-oriented components.
Therefore, if your application involves welding, durable structural parts, or industrial fabrication, HDPE is generally more suitable. If the project requires complex shapes, thermoforming, or appearance-focused components, ABS has a stronger advantage.

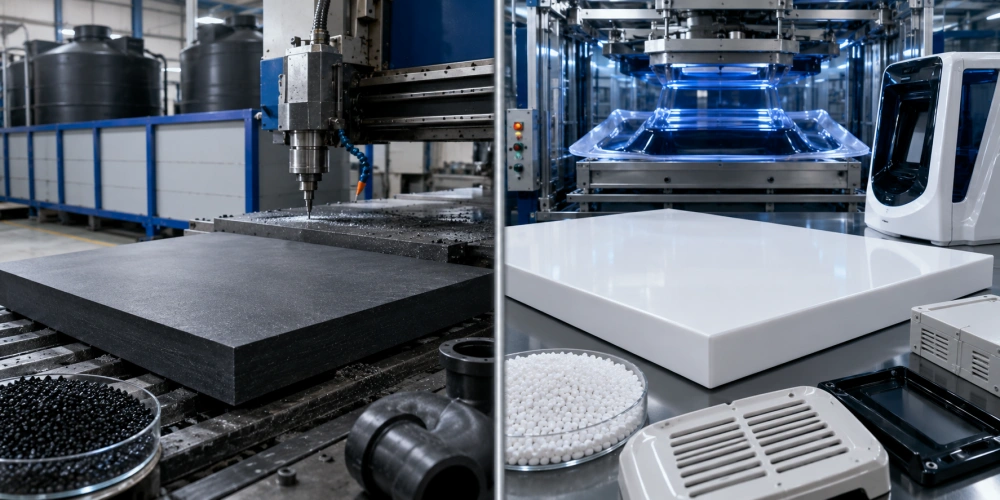

HDPE vs ABS Sheet: Cost Comparison
The price of HDPE and ABS sheet can vary depending on thickness, dimensions, material grade, and fabrication requirements, so there is no fixed price difference between the two materials.
HDPE Sheet
HDPE generally has a lower raw material cost and offers a strong cost-to-performance ratio for a wide range of industrial applications. It is especially suitable for projects that involve large surface areas, long-term durability, or high material consumption.
ABS Sheet
ABS is generally slightly more expensive than standard HDPE, but its better surface appearance and thermoforming performance can provide additional value for applications such as product housings, covers, and consumer-oriented components.
Therefore, if your priority is material cost and long-term performance stability, HDPE is usually the more economical choice. However, if the project places greater importance on appearance, forming quality, and product design, the additional cost of ABS may be worthwhile.
HDPE vs ABS Sheet by Application
HDPE and ABS are used in different types of applications, and the right material mainly depends on the actual working environment.
HDPE Sheet Is Commonly Used For:
- Chemical equipment and storage tank linings
- Water treatment equipment
- Food processing equipment
- Wear-resistant mechanical components
- Outdoor protective panels and marine components
These applications benefit from HDPE’s good chemical resistance, moisture resistance, and impact resistance.
ABS Sheet Is Commonly Used For:
- Equipment housings
- Automotive interior components
- Display structures
- Appliance and electronic housings
- Complex thermoformed parts
These applications benefit from ABS’s good rigidity, surface appearance, and forming performance.
Generally speaking, if the application involves water, chemicals, impact, or long-term outdoor exposure, HDPE is generally the more suitable choice. If the project places greater emphasis on appearance, structural rigidity, and complex shapes, ABS is usually the better option.
When Should You Choose HDPE Sheet?
If your application places greater emphasis on durability, chemical resistance, moisture resistance, and impact strength, HDPE sheet is the more suitable choice.
Common situations where HDPE sheet is recommended include:
Long-term exposure to water or moisture
For applications such as water tanks, wastewater treatment equipment, and outdoor facilities, HDPE’s low water absorption helps maintain material stability over time.
Industrial environments involving chemical exposure
For applications such as chemical equipment liners, storage tanks, and corrosion-resistant structures, HDPE offers good resistance to a wide range of acids, alkalis, and chemical media.
Applications requiring high impact resistance
For uses such as machine guards and transportation equipment liners, HDPE’s toughness helps reduce the risk of damage caused by impact or collision.
Projects requiring welding or custom fabrication
HDPE can be cut, drilled, welded, and CNC machined, making it suitable for a wide range of custom industrial components.
In simple terms, if your project requires corrosion resistance, moisture resistance, impact resistance, and stable long-term performance, HDPE sheet is usually the more practical choice.
When Should You Choose ABS Sheet?
If your application places greater emphasis on rigidity, appearance, complex shapes, and thermoforming performance, ABS sheet may be the more suitable choice.
Common situations where ABS sheet is recommended include:
Structural components requiring higher rigidity
ABS offers good hardness and dimensional stability, making it suitable for housings, covers, and supporting structures.
Products with higher appearance requirements
ABS provides a smooth and attractive surface finish, making it well suited for display components, equipment housings, and other appearance-focused products.
Products requiring complex shapes
ABS has good thermoforming performance, allowing it to be formed into curved surfaces and more complex structures.
Applications used in relatively controlled environments
Typical examples include electronic equipment housings, automotive interior components, and consumer product parts.
In simple terms, if your project focuses more on appearance, rigidity, and forming performance, ABS sheet is usually the more suitable choice.
Common Material Selection Mistakes
When choosing between HDPE and ABS, many users focus only on price or a single material property while overlooking the actual operating environment.
Common mistakes include:
1. Focusing only on hardness without considering the working environment
A harder material is not always the better choice. If the application involves impact, moisture, or chemical exposure, you need to evaluate the material’s overall performance rather than rigidity alone.
2. Comparing only the purchase price instead of long-term cost
A lower-priced material may result in frequent replacement if it cannot meet the actual application requirements. This can increase maintenance, downtime, and replacement costs over time.
3. Ignoring temperature and outdoor conditions
Different materials perform differently under high temperatures, low temperatures, and long-term outdoor exposure. The expected operating conditions should be confirmed before selecting the material.
4.Choosing the wrong fabrication method
HDPE and ABS have different processing characteristics. The fabrication method should be selected according to the final product design, structure, and performance requirements.
In summary, choosing between HDPE and ABS is not simply about deciding which material is better. The right choice should be based on your project’s working environment, performance requirements, fabrication methods, and budget.
How We Evaluate HDPE and ABS Sheet for Customer Projects
In practical projects, we do not simply decide which material is “better.” Instead, we evaluate the material based on the customer’s actual working environment and specific application requirements.
The main factors we typically consider include:
Working environment
Whether the material will be exposed to water, chemicals, high temperatures, low temperatures, or outdoor conditions.
Performance requirements
Whether the application requires better impact resistance, rigidity, chemical resistance, or surface appearance.
Fabrication methods
Whether the product needs to be cut, welded, CNC machined, or thermoformed.
Cost requirements
The project budget as well as the long-term cost of use.
By evaluating these factors together, we can determine whether HDPE sheet or ABS sheet is the more suitable material for your project.

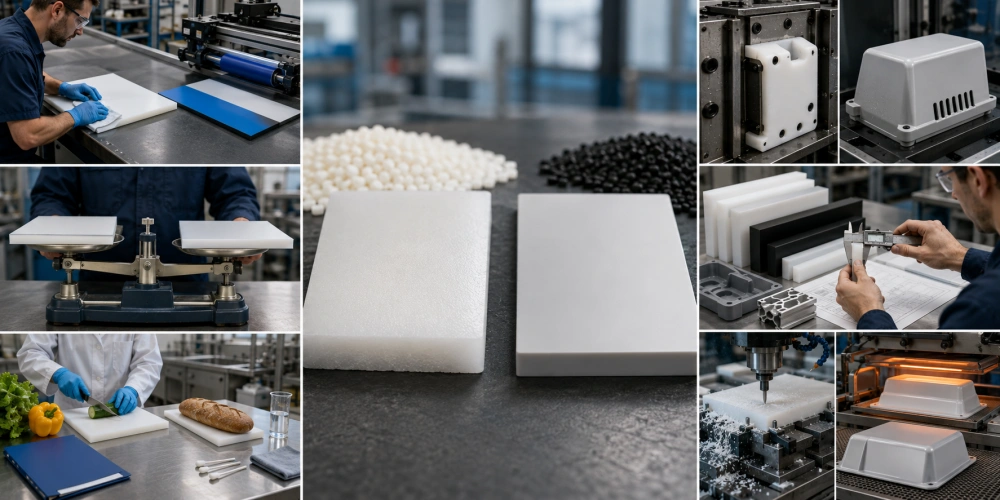

FAQs
Which is easier to paint or print, HDPE or ABS?
ABS is generally easier to paint and print on because it has better surface finishing properties, allowing it to achieve a more refined and attractive appearance.
HDPE has low surface energy, so conventional inks and coatings do not adhere well to its surface. If printing or painting is required, surface treatment or specialized printing and coating processes are necessary.
Which is lighter, HDPE or ABS?
The densities of HDPE and ABS are relatively close, but HDPE is less dense, which means it may be lighter when comparing sheets of the same dimensions. HDPE typically has a density of approximately 0.95–0.97 g/cm³, while ABS is usually around 1.03–1.07 g/cm³.
Therefore, if weight reduction is an important consideration for your project, HDPE can offer a certain advantage.
Is HDPE or ABS food safe?
HDPE can be used for food-contact applications when food-grade material compliant with standards such as FDA or LFGB is selected. Standard ABS is generally more suitable for non-food-contact applications, such as equipment housings and structural components.
For food processing, cutting boards, and food equipment, food-grade HDPE is usually the preferred choice.
Can HDPE sheet replace ABS sheet?
HDPE can replace ABS in some applications, especially when chemical resistance, moisture resistance, impact strength, and long-term durability are more important.
However, ABS is usually more suitable when the project requires higher rigidity, better surface appearance, or complex thermoforming. The final choice should depend on the working environment, performance requirements, and fabrication method.
How do I choose the correct sheet thickness?
The thickness of HDPE or ABS sheet should be selected based on load requirements, installation support, working environment, and fabrication needs. Applications involving heavier loads, fewer support points, impact, wear, or CNC machining may require thicker material.
In general, thin sheets are suitable for light-duty uses, medium-thickness sheets for most industrial components, and thick sheets for heavy-duty, protective, and wear-resistant applications. The final thickness should be determined according to the material type, sheet size, load, and operating conditions.
Partner with a Professional Engineering Plastics Manufacturer
We provide stable and reliable engineering plastic sheets and custom processing solutions for your projects
